Belden AX101046 - PS5 + Giga Flex Keystone Jack MDVO Style, Cat.5E black

Description:
   The GigaFlex PS5E Module is a new punch down UTP connector within the Modular Connectivity product line. The GigaFlex PS5E Module is based on a patent-pending Encapsulated Lead Frame technology ensuring excellent long term reliability as well as extremely stable transmission performance. The unique in-line IDC termination interface allows quick and easy installation using GigaFlex, BIX, 110 or Krone connecting tools. The GigaFlex PS5E is the module of choice for terminating UTP cables into the MediaFlex and Interface Outlet Series. It can also be mixed and matched with a wide variety of MDVO adapters, boxes and patch panels to suit practically any installation configuration for workstation outlet, consolidation point and telecommunications room applications. The PS5E-rated performance exceeds all requirements specified in the TIA/EIA-568-A Category 5e Addendum. All performance parameters including NEXT, FEXT, attenuation and return loss have been set to guarantee transmission performance up to 160 MHz. The GigaFlex PS5E is designed to be used with the IBDN Plus Cabling System and the IBDN System 1200.
FEATURES & BENEFITS
 • Usable bandwidth of 160 MHz guarantees headroom of Category 5e standard
 • Data rate of 1.2 Gb/s offers excellent price/performance ratio for gigabit applications
 • Patent-pending Encapsulated Lead Frame technology provides long term reliability and stability
 • Unique universal IDC termination interface - using GigaFlex, BIX, 110 or Krone tools
 • In-line IDC termination interface with sharp pair splitters facilitates installation in various mounting accessories
 • Easy-to-read 568A/B color scheme prevents termination errors
 • Clear protective cap strain relieves terminated pairs while allowing inspection and wire management
 • Colored modules facilitates service identification and eases network management
 • Mix and match flexibility with MDVO adapters, boxes and patch panels allows the same connector to be used in all applications throughout the channel.
APPLICATIONS
 • Telecommunications outlets
 • Multi-user telecommunications outlets
 • Consolidation points
 • Patch panels.
TECHNICAL SPECIFICATIONS
IDC Termination Interface
 • Gas-tight connection - insulation slicing of 22 to 24 AWG (0.64 to 0.51 mm) plastic insulated solid copper conductors
 • Durability: 10 insertions of any combination of wire gauge.
Modular Jacks
 • 8-pin connector, FCC part 68, Subpart F and IEC-603-7 compliant  • 8-pin connector compatible with 6-pin plugs
 • Durability: 1000 mating cycles.
Physical Characteristics
 • Dimensions: With the protective cap: 20.8 x 19.7 x 34.7 mm
Materials
 • Module snap-in: fire-retardant plastic, UL94V-0, gray, almond, white, black, orange, red, yellow, green, blue, purple or brown
 • IDC housing: fire-retardant plastic, UL94V-0, almond
 • Protective cap: fire-retardant plastic, UL94V-0, clear.
    IDC Termination Interface
    • IDC clip material: copper alloy with nickel plating
    • Encapsulated clips, in fire-retardant, UL94V-0, plastic support, black.
    Modular Jacks
    • Contact material: copper alloy with 50 micro-inches gold over nickel.

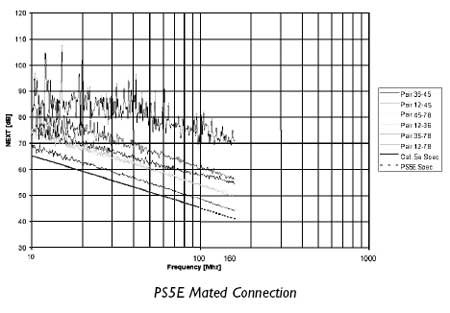

Transmission Characteristics
PS5E-Rated Modules
 • Designed to exceed the Category 5e standard
 • Minimum average values measured at 100 MHz with PS5E plugs:
Parameter Value
NEXT 45.8 dB
PSNEXT 42.4 dB
FEXT 46.8 dB
PSFEXT 45.5 dB
Attenuation 0.10 dB
Return Loss 27.0 dB


 Electrical Characteristics
 • Dielectric strength: 1,000 V RMS at 60 Hz for 1 minute
 • Current rating: 1.5 A maximum
 • Insulation resistance: 200 MΩ minimum
 • Contact resistance: 1 mΩ per contact.
INSTALLATION TIPS
Connector Assembly
 • Use the GigaFlex Termination Station (AX101172) for better support during termination process
 • Follow the color-coding sequence printed on the back of the module to position twisted pairs prior to termination
 • Use the cable jacket to protect the twisted pairs during termination
 • Use either GigaFlex, BIX, 110 or Krone connecting tools to terminate the module
 • Snap protective cap onto the back of the module to strain relieve the conductors after termination
 • Installation Guide is supplied with each box of 50 modules and is available in the "Document Center" of NORDX/CDT's Web Site.
Connector Maintenance
 • Use the Outlet release tool or a standard screwdriver to disassemble the module from its mounting hardware or to remove the protective cap for re-termination.
* Specification is subject to change without notice
