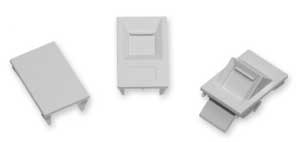

Belden AX101375 - European "6C" Shuttered Module Holder

The new European faceplates and adapters are designed to accept the GigaFlex and EZ-MDVO UTP Modules. European faceplates adapters come in straight and angled. They include a shutter to protect the module against dust and other contaminants.
FEATURES & BENEFITS
 • Available in flush or angled versions
 • Available in 1-port and 2-port configurations
 • Fire-retardant plastic, UL94V-0, white with light textured finish
 • Fully compatible with NORDX/CDT ID Tabs (when using GigaFlex or EZ-MDVO modules) to protect against dust and other contaminants
 • Faceplates fit over standard 45 mm x 45 mm backboxes or pathways for flush or surface mounting
 • Angled faceplates for shallow backboxes and floor boxes
 • Compatible with all NORDX/CDT UTP and MDVO Multimedia Modules.
APPLICATIONS
 • Telecommunications outlets in work areas.
TECHNICAL SPECIFICATIONS
Physical Characteristics
 • Dimensions: Flush shuttered module: 39 x 25 x 13 mm
Materials
 • Fire-retardant plastic, UL94V-0, white.
INSTALLATION TIPS
 • For unused ports, use the NORDX/CDT ID Tabs to protect the modules against dust and other contaminants
 • Label each port carefully for future reference and ease of administration
 • Use the different module colors to ease identification and location of users, areas or types of service.
* Specification is subject to change without notice
