Description:

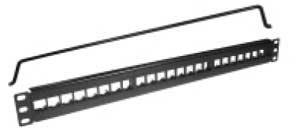

Flex Patch Panels provide a flexible and versatile termination solution for telecommunications room rack-mounted installations. The panels can be custom configured in the field to suit practically any particular configuration. Flex Patch Panels are compatible with GigaFlex and EZ-MDVO modules as well as MDVO-style Multimedia modules. Modules are ordered separately.
| FEATURES & BENEFITS | |
|---|---|
|
• Available in 16, 24, 32, 48, 96 and 144-port configurations in gray or black for greater design flexibility and optimization of rack installations • Custom configurable in the field, using GigaFlex, EZ-MDVO or Multimedia modules, to suit practically any installation requirement • Large front labeling space to facilitate port identification • Matching laser printable labels for clear identification and to ease network management • Integrated rear cable management bar for neat cable dressing • Compatible with standard 19 in. equipment racks, cabinets or wall mount brackets • Robust and installer-friendly design to reduce installation and operating costs • Color-coded with modules. |
|
| APPLICATIONS | |
|---|---|
|
• Horizontal distribution or equipment terminations in telecommunications rooms • Interconnection terminations in consolidation points. |
|
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Physical Characteristics • Dimensions: - 1U panel: 45 x 483 x 13 mm Materials • Panel: steel, 16 gauge, powder paint finish, black • Module holder: fire-retardant plastic, UL94HB, black. |
|
| INSTALLATION TIPS | |
|---|---|
|
• An installation guide is available at www.nordx.com • Plan the telecommunications room layout prior to patch panel installation • Allow for future expansion when planning patch panel installation • Use patch cord management accessories when frequent moves, additions and changes are expected • Terminate GigaFlex modules either prior to installation into the patch panel using the GigaFlex Termination Station (AX101172), or terminate modules directly in the patch panel • EZ-MDVO modules must be terminated prior to installing them in the patch panel • Label each port carefully for future reference and ease of location • Use different colors of modules and ID Tabs to ease identification and location of users, areas or types of service. |
|
