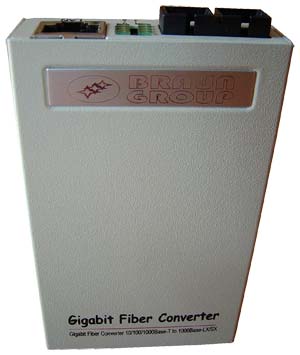

CS-1000 10/100/1000Base-T/1000Base-LX/SX Gigabit Fiber Converter
SPECIFICATIONS
  Standards:
  IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX/FX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX
  Supporting full duplex Ethernet mode (2000Mbps)


  10/100/1000Base-T RJ-45 Connector:
  The electrical interface of the Optical Converter supports both parallel and cross-over automatic switch functions. Applicable cable types are illustrated as follows:
  RJ-45 Pin    MDI Type   MDI-X Type
1 BI_DA+ BI_DB+
2 BI_DA- BI_DB-
3 BI_DB+ BI_DA+
6 BI_DB- BI_DA-
4 BI_DC+ BI_DD+
5 BI_DC- BI_DD-
7 BI_DD+ BI_DC+
8 BI_DD- BI_DC-
Cable Type: Category 5
Maximum Cable Distance: 100meters


  Fiber Optic Connectors:
  The optical interface of the Optical Converter supports both single-mode and multimode fiber optical transmission. It is also compatible with varied connectors (SC/FC/ST/LC/SC) for twin-fiber connection or Bi-di for single-fiber connection.


  Operation environment:
Temperature: 0~70°C
Humidity: 10~90% non condensing


  Dimension:
102mmx63.6mmx21.4mm


  Power supply:
+5 VDC/1000mA maximum


  Installation::
CS-1000 provides long-distance optical transmission when connected with the optical cable. The electrical interface of the Optical Converter supports auto-negotiable functionality and has the capacity of working status checking.


  DIP Switch Settings:
There are eight switches on the PCB. The default status of switch 1 to switch 8 is "off" except that switch 5 and 6 is "on". Default status can be changed upon different customer needs.


  SW setting:
  Switch No.    Status   Description
1 OFF TP port can operate at 100 or 1000Mbps(default)
ON TP port can operate at 10Mbps only
2 OFF TP port can operate at 10 or 1000Mbps(default)
ON TP port can operate at 100Mbps only
3 OFF TP port can operate at 10, 100 or 1000Mbps(default)
ON TP port can operate at 1000Mbps preferred slave mode only
4 OFF TP port can operate at 10, 100 or 1000Mbps(default)
ON TP port can operate at 1000Mbps full duplex preferred slave mode only
5 OFF TP port disable Auto-Neg to copper mode
ON TP port can operate at 1000Base-X Auto-Neg to copper mode(default)
6 OFF TP port can operate at half duplex mode only
ON TP port can operate at full duplex slave mode(default)
7 OFF TP port can operate at full duplex mode(default)
ON TP port can operate at half duplex master mode only
8 OFF Enable pause frame(default)
ON Disable pause frame


  Quick table for speed and duplex setting of TP (on SW)::
  Switch 1  Switch 2   Switch 3  Switch 4  Switch 5  Switch 6  Switch 7  Operating status
ON OFF OFF OFF OFF ON OFF 10M, full duplex only
ON OFF OFF OFF OFF OFF ON 10M, half duplex only
OFF ON OFF OFF OFF ON OFF 100M, full duplex only
OFF ON OFF OFF OFF OFF ON 100M, half duplex only
OFF OFF ON OFF OFF ON OFF 1000M, half duplex only
OFF OFF OFF ON OFF ON OFF 1000M, full duplex only
OFF OFF OFF OFF ON ON OFF 1000/100/10M, full /half duplex with auto-negotiation (default)
Note: Reset the Optical Converter once the DIP Switch setting has been changed


* Specification is subject to change without notice
