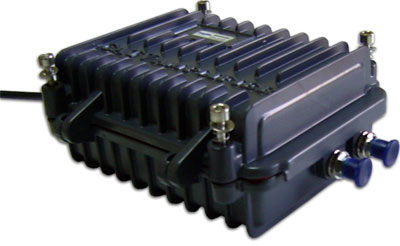

| Specifications: | ||
|---|---|---|
| Frequency Range | MHz | 45~550 |
| Rated Gain | dB | 30 |
| Flatness In Band | dB | 0.5 |
| Rated Input Level | dBµV | 72 |
| Rated Output Level | dBµV | 102 |
| Gain Adjustable Range | dB | 0~15 |
| Slope Adjustable Range | dB | 0~18 |
| Noise Figure | dB | ≤±10 |
| Composite Triplee Beat | dB | 56 |
| Composite Second Order | dB | 57 |
| Return Loss | dB | ≥10 |
| General | ||
| Anti-thunder | KV | 5 (10/700µS) |
| Power Voltage (50HZ) | V | ~220V±10% |
| Consumption | VA | 7 |
| Dimension | mm | 215x185x70 |
a.Please use power supply with over-current protection. First make the voltage to the highest (~60V) before connect the power, then change the switch according to the input voltage, otherwise the transformer is easy to heat, even damage to equipment and loss the max output level. Please use voltage aparatus when adopt the power supplier.
b.Check over-current protection after installation. If one circuit is not needed, pull out fuse on this circuit.
c.Installation and mainteneance must be performed by tehnicians.

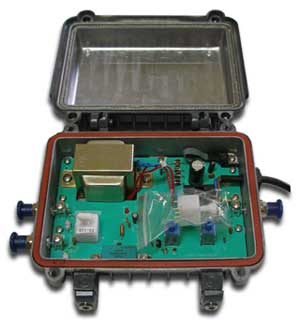

Product structure A(~220V):
| 1. RF Input | 2. Modulate Attenuator |
| 3. Modulate Equalizer | 4. RF Amplify Module |
| 5. Intercourse Input Fuse | 6. Power Indication |
| 7. Power Transformer | 8. Split Output Inserter |
| 9(10). RF Output |
