MW-GL-860-R(20) - G(L) series 750/860 MHz LINE EXTENDER
Application   Benefits    G(L) series of 750/860 MHz line extenders are typically deployed in the feeder or tapped portion of the RF network. Configurable as either a single or dual output device, these line extenders provide a flexible, cost effective product platform, and are readily adaptable to wide-ranging design application.    G(L) series of 750/860 MHz line extenders are available in multiple fixed gain versions and are ideally suited for new build and rebuild construction. They are gain-targeted and specifications-targeted for direct drop-in retrofit in 860 MHz transitional upgrades.All 750/860 MHz active electronics offer improved performance, reliability and accessibility.    G(L) series of 750/860 MHz line extenders have two separate test ports for forward and return RF signal.   Enhanced performance via advanced hybrid technology Easily activated second output port via test port Adaptable to wide-ranging plant characteristics Flexible system design application RF output level adjustable Improved test port level accuracy Eliminates material/labor costs associated with external passive installation Minimizes plug-in accessory inventory requirements Separate forward and return output test port Simple set-up Two hybrids in forward path, one in return path AGC control
Features 750 or 860GHz platform Standard four port two output housing Anti-corrosive housing coating Advanced hybrid technology High reliability: design simplicity, waterproof, large heat sink surface, low power consumption High performance: high return loss, low noise, small flatness, low distortion Easy maintenance: plug-in hybrid, compatibility with different passband   Optional hybrids: push-pull, power double -20 dB output directional coupler test port Optional split outputs RF output level adjustable using plug-in chip Fixed value plug-in equalizers to input frequency slope Multiple plug-in equalizers High efficiency power supply 10 amp power passing capacity AGC control

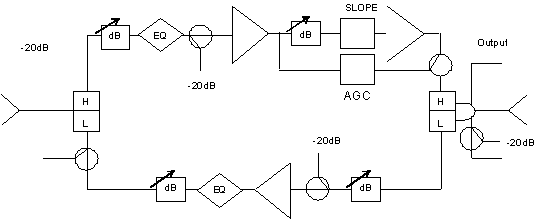

BLOCK DIAGRAM
Specification FORWARD DESCRIPTION UNIT Push-Pull Power Double Output Ports   1 or 2 (optional) Output Test Ports   1 or 0 (optional) Passband MHz 85 ~ 860 Frequency Response dB ≤ ± 0.75 Operational Gain dB 26 30 26 30 Minimum Full Gain dB 32 36 28 32 Gain Adjusting Range dB 0 ~ -10 ( 1dB/step plug-in ) Slope Adjusting Range dB 2 ~ -22 ( 2dB/step plug-in ) Return Loss dB -16 Noise Figure dB 8 Test Port Type dB Directional Coupler Test Port Level dB -20 Test Port Accuracy dB ≥±0.5 Reference Channel Loading   PAL B/G, PAL D/K or NTSC channels upto 860MHz Operational Input Level dBmV 12 Operational Output Level dBmV 12 + Operational Gain Composite Second Order * dBc -61 -57 -63 -59 Composite Tripe Beat * dBc -60 -54 -69 -61 Hum Modulation dB ≥60   RETURN DESCRIPTION Output Test Ports   1 Passband MHz 5 ~ 65 Frequency Response dB ≤±0.5 Operational Gain dB 18 (15, 20dB optional) Return Loss dB ≤-16 Noise Figure dB 10 Test Port Type dB Directional Coupler Test Port Level dB -20 Test Port Accuracy dB ≤±0.5 Reference Channel Loading   6 Operational Input Level dBmV 21 Recommended Output Level dBmV 36 Hum Modulation dB ≥60   POWERING AC Input Range VAC 60±15 AC Current mA 360mA/60V   500mA/45V AC Bypass Current Rating A 10   PHYSICAL Operating Temperature °C -40 ~ +60 Dimensions ( H x W x D ) cm 22 x 32 x 8 Weight kg 3.9   Notes: * Specificatipns reflect typical system cascade performance, individual station performance may vary. * Specificatipns are at the conditions of the operational output level and 25°C
