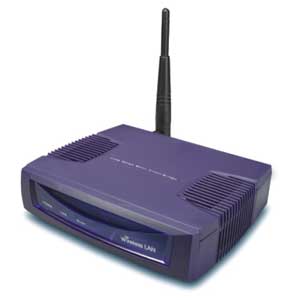

Long Range Wireless Multi-Client Bridge/Access Point/Repeater
| Features | Benefit |
|---|---|
| High Speed Data Rate Up to 54Mbps | Capable of handling heavy data payloads such as MPEG video streaming. |
| IEEE 802.11b/g Compliant |
Fully Interoperable with IEEE 802.11b/IEEE802.11g Compliant |
| Point-to-point, Point-to-multipoint Wireless Connectivity | Let users transfer data between two buildings or multiple building. |
| Plug and Play | No driver needed, easy and quick to connect your Ethernet device to Wireless |
| Power-over-Ethernet | Flexible Access Point locations and cost savings. |
| WPA (TKIP/Pre-shared key) support | Powerful Data Security |
| Hide SSID (AP Mode) | Avoids unallowable users sharing bandwidth, increases efficiency of the network |
| DHCP Client/Server | Simplifies Network Administration |
| WDS (Wireless Distribution System) | Make wireless AP and Bridge mode simultaneously as a wireless repeater |
| MAC address filtering (AP Mode) | Ensures secure network connections |
| Seamless Roaming | Allows users to travel between APs without losing their network connection |
| Specifications : | |
|---|---|
| GENERAL | |
| Data Rates | 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps |
| Standards | IEEE802.11b/g, IEEE802.1x, IEEE802.3, IEEE802.3u |
| Compatability | IEEE 802.11g/ IEEE 802.11b compliant |
| Power Requirements |
Power Supply: 90 to 240 VDC +/-10%(depends on different countries) Device: 12 V/ 1A |
| Status LEDs | LAN:Link, WLAN:Link, Power: on/off |
| Regulation Certification | FCC Part 15/UL, ETSI 300/328/CE |
| Frequency Band | 2.400~2.484 GHz |
| Media Access Protocol | Carrier sense multiple access with collision avoidance (CSMA/CA) |
| Modulation Technology |
Orthogonal Frequency Division Multiplexing (OFDM) DBPSK @ 1Mbps DQPSK @2Mbps CCK @ 5.5 & 11Mbps BPSK @ 6 and 9 Mbps QPSK @ 12 and 18 Mbps 16-QAM @ 24 and 36 Mbps 64-QAM @ 48 and 54 Mbps |
| Operating Channels | 11 for North America, 14 for Japan, 13 for Europe, 2 for Spain, 4 for France |
| Receive Sensitivity (Typical) |
-94dBm @ 1Mbps -92dBm @ 6Mbps -83dBm @ 24Mbps -92dBm @ 2Mbps -90dBm @ 9Mbps -79dBm @ 36Mbps -89dBm @ 5.5Mbps -88dBm @ 12Mbps -74dBm @ 48Mbps -86dBm @ 11Mbps -86dBm @ 18Mbps -72dBm @ 54Mbps |
| Available transmit power (Depend on Different Countries' Regulation) |
21 ± 2dBm @1, 2, 5.5 and 11Mbps 20 ± 2dBm @6, 9, 12, 18Mbps 17 ± 2dBm @24, 36Mbps 16 ± 2dBm @48, 54Mbps |
| RF Connector | TNC Type (Female Reverse - FCC Standard) |
| Network Information | |
| Topology | Ad-Hoc, Infrastructure |
| Operation Mode | Point-to-Point/ Point-to-Multipoint Bridge/ AP/ Client Bridge/ Repeater |
| Interface | One 10/100Mbps RJ-45 LAN Port |
| Security |
IEEE802.1x / RADIUS Client (EAP-MD5/TLS/TTLS)-AP mode WPA - Wi-Fi Protected Access PSK (Pre shared key) with 64/128-bit WEP Key EAP-MD5/TLS/TTLS authenticator (AP Mode) TKIP MAC address filtering (WLAN) Hide SSID in beacons Layer 2 Isolation |
| IP Auto-configuration | DHCP client / server |
| Management | |
| Configuration | Web-based configuration (HTTP) |
| Firmware Upgrade | Upgrade firmware via Web-browser |
| Physical | |
| Dimensions (HxWxD) |
125(L)mm * 108(W)mm * 31(H)mm 4.9 (L)in* 4.3(W)in * 1.2(H)in |
| Weight | 350 g (0.8 lb.) |
| Environmental | |
| Temperature Range |
-10°C to 45°C (14°F to 113°F) - Operating -40°C to 70°C (-40°F to 158°F) - Storage |
| Humidity (non-condensing) | 5%~95% Typical |
