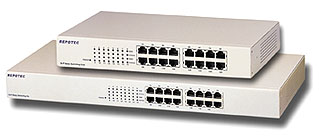

RP-1716DR - 16-P 10/100Mbps NWay Switch
	The device is a powerful, high-performance Fast Ethernet switch, with all 16 ports capable of 10 or 100Mbps auto-negotiation operation (NWay) which means the switch could automatically negotiate with the connected partners on the network speed and duplex mode. It is ideal for micro-segmenting large networks into smaller, connected subnets for improved performance, enabling the bandwidth demanding multimedia and imaging applications. Moreover, the 10/100Mbps auto-sensing ability provides an easy way to migrate 10Mbps to 100Mbps network with no pain. Compared to the shared 10Mbps or 100Mbps networks, the switch delivers a dedicated 10/100Mbps connection to every attached client with no bandwidth congestion issue.    The switch is plug-&-play without any software to configure and also fully compliant with all kinds of network protocols. Moreover, the rich diagnostic LEDs on the front-panel provide the operating status of individual port and whole system
Features - 8-P 1000T Copper Gigabit Switch  • Complies with 10BASE-T specifications of the IEEE802.3 standard  • Complies with 100BASE-TX specifications of the IEEE802.3u standard  • 16 * RJ-45 ports for 100BASE-TX and 10BASE-T connectivity  • Supports NWay protocol for speed (10/100Mbps) and duplex mode (Half/Full) auto-detection  • Supports MDI/MDI-X auto crossover  • Supports full and half duplex operation on all ports  • Supports back-pressure (half duplex) and flow control (IEEE 802.3x)  • Wire-speed packet filtering and forwarding rate  • Store-and-forward architecture filters fragment & CRC error packets  • Supports 8K entries and 512Bytes entries of CAM  • 512KBytes buffer memory  • Supports extensive LED indicators for network diagnostics Desk Top design; 19" rack-mountable (optional rack-mount brackets)
SPECIFICATIONS  Standards  IEEE802.3, IEEE802.3u and IEEE802.3x  Ports  16 * 10/100Mbps RJ-45 NWay ports  Media Support  10BASE-T: Category 3, 4 or 5 TP  100BASE-TX: Category 5 TP  Brandwidth  200/100/20/10Mbps  Forwarding/Filltering Rate  10Mbps: 14880pps/14880pps  100Mbps: 148800pps/148800pps  MAC Address  Embeded 8K MAC address table, Self-Learning  Buffer Memory  Embeded 512KBytes packet buffer  Duplex Modes  Auto-Negociation  Crossover  Auto-MDI/MDIX Crossover function for each port  LED indicators  System: Power, Port: Link/Act, Speed  Power Supply  Internal Full range Auto-Switching  Power Consumption  18Watt maximum  Environment  Operating Temperature: 0°~45°C  Storage Temperature: -20°~70°C  Humidity: 10%~90% Non-Condensing  Dimensions  441x196x44mm (RP-1716RT)  267x161x44mm (RP-1716DR) Certifications  FCC Class A, CE
* Specification is subject to change without notice
