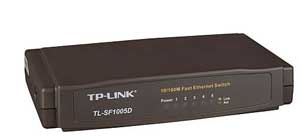

TL-SF1005D - 5-port 10/100M mini Desktop Switch, 5 10/100M RJ45 ports, plastic case

 • 5-port 10/100M Fast Ethernet Desktop Switch
 • Supports MAC address self-learning and auto MDI/MDIX
Description
   TL-SF1005D 5-port 10/100Mbps Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.
   The TP-LINK TL-SF1005D 5-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them
Features
 • Complies with IEEE802.3, IEEE802.3u standards
 • 5 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
 • Supports IEEE802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
 • Supports MAC address auto-learning and auto-aging
 • LED indicators for monitoring power, link, activity
 • Plastic case, desktop or wall-mounting design
 • External Power Adapter supply
Specifications :
Standards: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
Access Method: CSMA/CD
Topology : Star
Data Transfer Rate Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex)
Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Number of Ports 5 10/100Mbps Auto-Negotiation ports
LED indicators Power, Link/Act
Transfer Method Store-and-Forward
MAC Address Learning Automatically learning, automatically Update
Frame Filtering and Forward Rate 10Mbps: 14880pps, 100Mbps: 148800pps
Power Supply Output 12V~ 50-60Hz, 0.35A
Safety & Emission FCC, CE
Dimensions (WxDxH) 140x85x30mm
Environment Operating Temperature: 0°C~40°C
Storage Temperature: -40°C~70°C
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~95% non-condensing
* Specification is subject to change without notice
