• 8-port 10/100M Fast Ethernet Desktop Switch
• Supports MAC address self-learning and auto MDI/MDIX.
• Switching Power Supply
DVE Switching Power Supply
| Description |
|---|
|

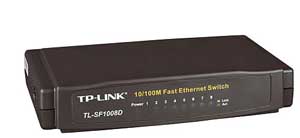

TL-SF1008D 8-port 10/100Mbps Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.
The TP-LINK TL-SF1008D 8-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them |
| Features |
|---|
|
• Complies with IEEE802.3, IEEE802.3u standards • 8 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX • Supports IEEE802.3x flow control for Full Duplex mode and backpressure for half-duplex mode • Supports MAC address auto-learning and auto-aging • LED indicators for monitoring power, link, activity • Plastic case, desktop or wall-mounting design • External Power Adapter supply |
| Specifications : | |
|---|---|
| Standards: | IEEE802.3 10Base-T, IEEE802.3u 100Base-TX |
| Access Method: | CSMA/CD |
| Topology : | Star |
| Data Transfer Rate |
Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex) Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex) |
| Network Media (Cable) |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) |
| Number of Ports | 8 10/100Mbps Auto-Negotiation ports |
| LED indicators | Power, Link/Act |
| Transfer Method | Store-and-Forward |
| MAC Address Learning | Automatically learning, automatically Update |
| Frame Filtering and Forward Rate | 10Mbps: 14880pps, 100Mbps: 148800pps |
| Power Supply Output |
9V~ 50-60Hz, 0.8A DVE Switching Power Supply |
| Safety & Emission | FCC, CE |
| Dimensions (WxDxH) | 140x85x30mm |
| Environment |
Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~95% non-condensing |
