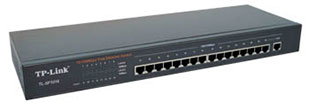

TL-SF1016 - 16-port 10/100Mbps Ethernet Switch
	TL-SF1016 16-port 10/100Mbps Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. Rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for less than 16 users environment. The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner (Ethernet adapter, for example) with the best speed.
Each port provides full bandwidth (Maximum with 200Mbps in full duplex mode) without traditional hub's collision phenomenon downgrading the performance. An uplink (cascade) port is provided to link to another Switch for more ports expansion. Easy read LED indicators are supported for cable installation and normal TL-SF1016 16-port 10/100Mbps Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. Rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for less than 16 users environment.     The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner (Ethernet adapter, for example) with the best speed. Each port provides full bandwidth (Maximum with 200Mbps in full duplex mode) without traditional hub's collision phenomenon downgrading the performance. An uplink (cascade) port is provided to link to another Switch for more ports expansion. Easy read LED indicators are supported for cable installation and normal operation diagnostics. The Switch can be used on desktop and rack-mount.
Features  • Complies with IEEE 802.3/802.3u Ethernet standards  • 16 10/100Mbps UTP/STP ports  • Full and half duplex support  • IEEE802.3x flow control support  • Automatic source address learning  • Plug and play  • Easy read LED indicators for installation and operation diagnostics
Specifications : Access Method CSMA/CD,10Mbps and 100Mbps Standard Conformance IEEE802.3 10Base-T, IEEE802.3u 100Base-TX Number of Ports 16 UTP/STP MDX ports, 1 MDI port (uplink) Network Media (Cable) 10Base-T:UTP category 3, 4, 5 cable100Base-TX:UTP category 5 cable Switch Mechanism Filtering, Forwarding and Learning; Switching Method: Store-and-Forward; Filtering Rate: Line Speed; Forwarding Rate: Line Speed LED Indicators Power10/100Mbps,Link/Activity, Full Duplex/Collision Temperature Operation: 0°C to 40°C Storage:-40°C to 70°C Humidity Operation: 10% to 90% RH Storage:5% to 90% RH Input Power AC 100~240V/50-60Hz/1A
* Specification is subject to change without notice
