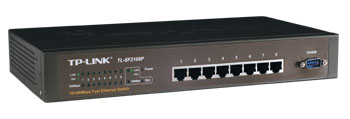

TP-Link TL-SF2109P - 8+1 Smart Ethernet Switch
 • 8 10/100M RJ45 ports + 1 100M fiber slot.
 • Supports port-based VLAN and Trunk.
 • Provides Console(RS232) management method.
  The TL-SF2109P Smart Switch provides 8 10/100M ports,one independent extension slot supporting TL-SM201serials fiber module cards which can extend the network radii to 60km. The TL-SF2109P supports many smart configuration such as Port VLAN, Tag VLAN, Port Enable/Disable, MAC Address Binding. Featuring high-performance, easy to use and competitive price, the TL-SF2109P is an ideal solution for workgroup and smart district.
 • Support IEEE802.3, IEEE802.3u
 • 8 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto MDI/MDIX
 • 1 extension slots supporting 100M fiber module card (TL-SM201 series)
 • Support 9 Port VLAN and 9 IEEE802.1Q Tag VLAN
 • Support Trunk, up to 1 Trunk group
 • Support Port Priority
 • Support Port Enable/Disable
 • Support Broadstorm Control
 • 1 console port supporting configured software setting
 • Desktop Steel case
 • Internal power supply
 Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
 Ports 8 10 /100M Auto-Negotiation RJ45 ports supporting Auto MDI/MDIX
1 Extension Slot
1 Console port (RS232 DB9 Male)
 Network Media 10Base-T:Cat. 3 or above UTP
100Base-TX:Cat.5 UTP
00Base-FX:MMF or SMF
 LED Indicator  Each port Link/Act, 100Mbps
 Slot Slot
 Other Power
 (L x W x H)
294mm x 158mm x 44mm
 Environment Operation Temperature: 0°C-40°C;
Store Temperature: -40°C-70°C
Operation Humidity: 10%-90% RH Non-condensing;
Store Humidity: 5%-90% RH Non-condensing
 Power Input:110-260VAC,50/60Hz
 Compatible Module
TL-SM201CM 100Base-FX Multi-Mode Fiber Module(SC connector,up to 2km)
TL-SM201CS-20/40/60 100Base-FX Single-Mode Fiber Module(SC connector,up to 20/40/60km
* Specification is subject to change without notice
