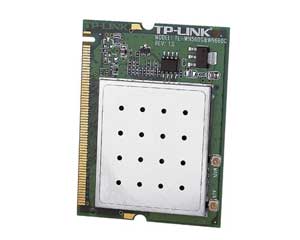

TP-Link TL-WN560G - 54M Wireless mini PCI Adapter with eXtended RangeTM

 • 54M WLAN mini PCI Module with 2x to 3x eXtended Range™ technology
 • 2.4GHz, IEEE802.11g/b, with two Ultra-Mini SMT-GSC Antenna connector
 • WPA data security, IEEE802.1x authentication, TKIP/AES encryption, 64/128/152-bit WEP encryption
   The TL-WN560G 54Mbps Wireless Network Mini PCI Adapter is fully compatible with IEEE 802.11b and IEEE802.11g standards. Its auto-sensing capability allows high packet transfer rate up to 54Mbps for maximum throughput, or dynamic range shifting to lower speeds due to distance or operating limitations in an environment with a lot of electromagnetic interference. It can also interoperate with all the 11Mbps wireless (802.11b) products. Your wireless communications are protected by up to 152-bit encryption for high security.
 • Complies with IEEE802.11g, IEEE802.11b standards
 • Adopts 2x to 3x eXtended Range™ WLAN transmission technology
 • Supports WPA data security, IEEE802.1x authentication, TKIP/AES encryption, 64/128/152-bit WEP encryption
 • Supports 54/48/36/24/18/12/9/6/11/5.5/3/2/1Mbps wireless LAN data transfer rates
 • Provides Type IIIb Mini PCI interface
 • Supports Ad-Hoc and Infrastructure modes
 • Supports roaming between access points when configured in Infrastructure mode
 • Ease to configure and provides monitoring information
 • Supports Windows 98SE, ME, 2000, XP
Protocols and Standards IEEE 802.11g; IEEE 802.11b; CSMA/CA with ACK
Interface Type IIIb Mini PCI
Frequency 2.4~2.4835GHz
Radio Data Rate 54/48/36/24/18/12/9/6/11/5.5/3/2/1Mbps (Auto Rate Sensing)
Spread Spectrum DSSS
Modulation 1M DBPSK; 2M DQPSK; 5.5M, 11M CCK; 6M, 9M, 12M, 18M, 24M, 36M, 48M, 54M OFDM;
Transmission Distance Indoor up to 100m, outdoor up to 300m (Standard transmission distance, it is limited in an environment).
Indoor up to 200m, Outdoor up to 830m (Adopt 2x to 3x eXtended Range™ WLAN transmission technology, it is limited in an environment)
Transmit Power 16dBm(MAX)
Data Security WPA; 64/128/152 BIT WEP; TKIP/AES
Power Consumption Typically 430mA in full Transmit (TX), 330mA in full Receive (RX)
Dimensions 60 x 45 x 3.3 mm
Environment Operating Temperature: 0~40°C
Storage Temperature: -40~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Operating System Windows 98/ME/2000/XP
* Specification is subject to change without notice
