• 1 10/100M RJ45 port + 1 single-mode WDM fiber port.
• Complies with IEEE 802.3u Ethernet Standard.
| Description |
|---|

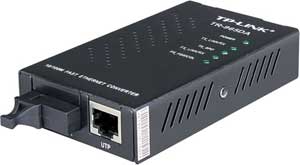

| The TR-965DA product is 10/100Mbps fast Ethernet WDM Fiber Converter. The converter mediates between a 10/100Base-Tx segment and a 100Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding workgroups that require expansion of the Ethernet network. |
| Features |
|---|
|
• Complies with 802.3u 10/100Base-Tx and 100Base-Fx standard • Provide one SC fiber connector and one UTP connector • Auto-detection of half/full duplex transfer mode for Tx port • Auto-negotiation of 10/100Mbpa rate and Auto-MDIX for Tx port • Provide switch configuration of half/full duplex transfer mode for FX port • Extend fiber distance up to 20-60km for single-mode fiber • Easy-to-view LED indicators provides status to easily monitor network activity • External power supply |
| SPECIFICATIONS | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
