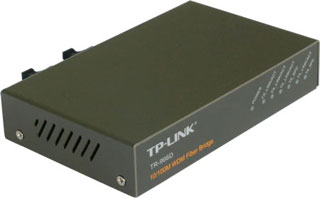

TP-Link TR-966D - 10/100M Single-Mode Fiber/SMF Converter (WDM, 20km, 2 RJ45 Port + 2 SC Port)

 • 2 10/100M RJ45 port + 2 single-mode WDM fiber port.
 • Complies with IEEE 802.3u Ethernet Standard.
   The TR-966D product is 10/100Mbps fast Ethernet WDM Fiber Converter. The converter mediates between a 10/100Base-Tx segment and a 100Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding workgroups that require expansion of the Ethernet network.
 • Complies with 802.3u 10/100Base-Tx and 100Base-Fx standard

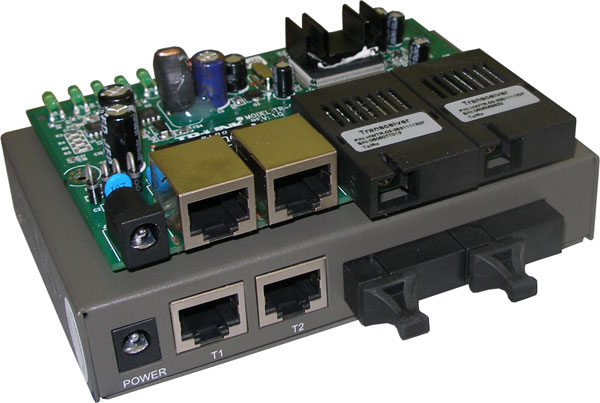

 • Provide two SC fiber connector and two UTP connector
 • Auto-detection of half/full duplex transfer mode for Tx port
 • Auto-negotiation of 10/100Mbpa rate and Auto-MDIX for Tx port
 • Extend fiber distance up to 20-60km for single-mode fiber
 • Easy-to-view LED indicators provides status to easily monitor network activity
 • External power supply
The connectors and network cable supported by the converter are listed in the following:

UTP: cat 5 Twisted-Pair

Fiber SC: F1: TX:1310nm; RX:1550nm; F2: TX:1550nm; RX:1310nm
Model Connection Mode Transmission Distance Transmission Media
TR-966D-20 RJ45-SC 20KM Single-mode fibre, Cat.5
TR-966D-40 RJ45-SC 40KM Single-mode fibre, Cat.5
TR-966D-60 RJ45-SC 60KM Single-mode fibre, Cat.5
* Specification is subject to change without notice
